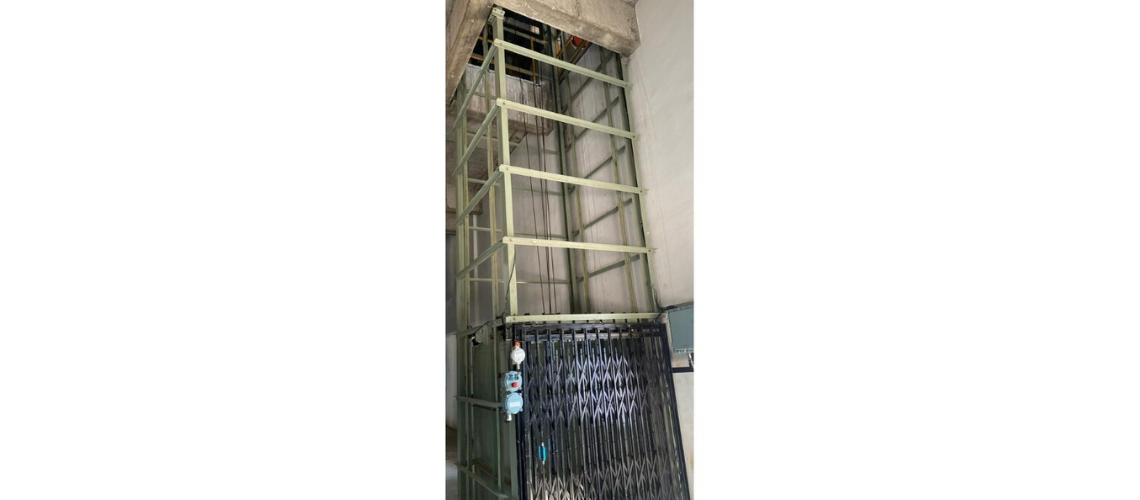

FLAMEPROOF TYPE GOODS LIFTS

At Cranoist Engineers, we design and manufacture Flameproof Goods Lifts specifically for environments where safety is a top priority. These lifts are ideal for use in locations such as oil refineries, chemical processing plants, and paint manufacturing units—places where flammable gases, vapors, or dust can pose a serious risk. Our flameproof lifts help ensure secure, explosion-resistant movement of materials.

A Flameproof Goods Lift is a specially engineered material handling system designed to operate safely in hazardous areas. These lifts are constructed with explosion-proof electrical components and spark-resistant materials to prevent ignition sources, making them suitable for transporting goods between floors in explosive atmospheres.

Technical Specifications

• Capacity: Custom-built units starting from 0.5 tons to 10 tons and more.
• Lifting Height: Available in ranges up to 100 feet (approx. 35 meters), customizable as per site       requirements.
• Material: High-strength mild steel structure.
• Power Supply: Operates on 415V, 3-phase, 50Hz power.
• Enclosures: Electrical components enclosed in flameproof housings

Safety Features

Our lifts prioritize worker and material safety with the following features:

• Overload Prevention: Automatically stops operation if the lift exceeds its rated load.
• Emergency Stop Switch: Allows immediate halting of the lift during emergencies.
• Interlocking Systems: Lift won’t operate unless gates/doors are securely closed.
• Manual Lowering Mechanism: Enables safe lowering of the lift in case of power outages.
• Sealed Electrical Panels: Prevents ignition by isolating electrical parts from external hazards.

Strong and Safe Construction

• Rigid Frame: Fabricated to endure mechanical stress and explosion-related pressure.
• Spark-Resistant Design: Elements such as door panels and guide systems are made from stainless steel or aluminum.
• Reinforced Gates: Built to contain any accidental sparks or pressure surges.
• Ventilation System: Prevents accumulation of flammable gases in the lift shaft.

Operation and Control

• Floor-Wise Control Panels: Push-button operation available at each floor level.
• Flameproof Switchgear: All switches and wiring are explosion-proof.
• Intrinsic Safety Circuits: Essential electronics designed to limit energy to prevent ignition.

Customization Options

Our flameproof lifts are available with complete customization

• Cage Dimensions: Tailored up to 4 meters in width and depth.
• Access Configuration: Entry/exit can be on the same side, opposite, or corner layout (L- type).
• Optional Add-ons: Stainless steel cabins, specialized electricals for gas groups I, IIA, IIB, IIC.
